單刃和6刃整體硬質合金锪鉆

公差:
柄徑: +.000" / -.001"
鉆尖角度: ±1°

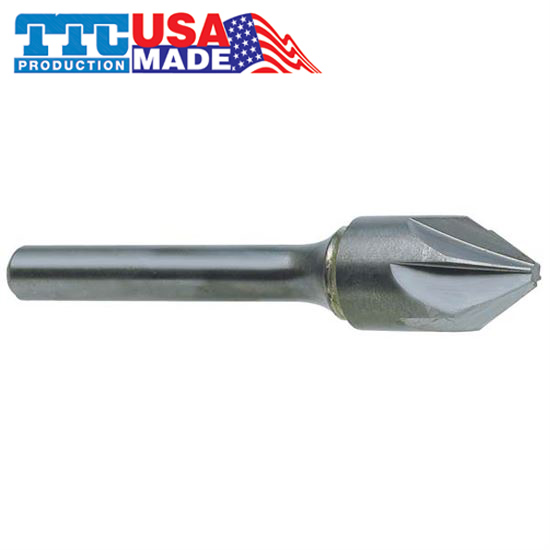

TTC USA 單刃和6刃整體硬質合金锪鉆
直柄•右旋•C2等級硬質合金材質•60°82°90°鉆尖角

應用：
·用于除淬火鋼外的所有材料

特點：
·根據切削尺寸和材料,速度可達到150至500轉/分鐘
·鋼柄

貨號	型號	尺寸	柄直徑	全長	鉆尖角度	刃數	重量	價格(1件起訂)			購買
								1	1	1
20-735-264		1"	1/2"	3"	90°	6	0.4321 lbs.	1154.77	1154.77	1154.77
20-735-248		3/4"	3/8"	2-3/4"	90°	6	0.2778 lbs.	781.31	781.31	781.31
20-735-240		5/8"	3/8"	2-1/2"	90°	6	0.1543 lbs.	526.69	526.69	526.69
20-735-232		1/2"	1/4"	2-1/2"	90°	6	0.0926 lbs.	351.98	351.98	351.98
20-735-224		3/8"	1/4"	2-1/2"	90°	6	0.0617 lbs.	262.21	262.21	262.21
20-735-216		1/4"	1/4"	2"	90°	6	0.0396 lbs.	169.45	169.45	169.45
20-735-164		1"	1/2"	3"	82°	6	0.4321 lbs.	1154.77	1154.77	1154.77
20-735-148		3/4"	3/8"	2-3/4"	82°	6	0.2778 lbs.	781.31	781.31	781.31
20-735-140		5/8"	3/8"	2-1/2"	82°	6	0.1543 lbs.	526.69	526.69	526.69
20-735-132		1/2"	1/4"	2-1/2"	82°	6	0.0926 lbs.	351.98	351.98	351.98
20-735-124		3/8"	1/4"	2-1/2"	82°	6	0.0617 lbs.	262.21	262.21	262.21
20-735-116		1/4"	1/4"	2"	82°	6	0.0396 lbs.	169.45	169.45	169.45
20-735-064		1"	1/2"	3"	60°	6	0.4321 lbs.	1154.77	1154.77	1154.77
20-735-048		3/4"	3/8"	2-3/4"	60°	6	0.2778 lbs.	781.31	781.31	781.31
20-735-040		5/8"	3/8"	2-1/2"	60°	6	0.1543 lbs.	526.69	526.69	526.69
20-735-032		1/2"	1/4"	2-1/2"	60°	6	0.0926 lbs.	351.98	351.98	351.98
20-735-024		3/8"	1/4"	2-1/2"	60°	6	0.0617 lbs.	262.21	262.21	262.21
20-735-016		1/4"	1/4"	2"	60°	6	0.0396 lbs.	169.45	169.45	169.45
20-704-264		1"	1/2"	3"	90°	1	0.2601 lbs.	1123.75	1123.75	1123.75
20-704-248		3/4"	3/8"	2-3/4"	90°	1	0.2579 lbs.	874.98	874.98	874.98
20-704-240		5/8"	1/4"	2-1/2"	90°	1	0.13 lbs.	521.78	521.78	521.78
20-704-232		1/2"	1/4"	2-1/2"	90°	1	0.0859 lbs.	362.62	362.62	362.62
20-704-224		3/8"	1/4"	2-1/2"	90°	1	0.0617 lbs.	253.73	253.73	253.73
20-704-216		1/4"	1/4"	2"	90°	1	0.0331 lbs.	161.34	161.34	161.34
20-704-164		1"	1/2"	3"	82°	1	0.2601 lbs.	1123.75	1123.75	1123.75
20-704-148		3/4"	3/8"	2-3/4"	82°	1	0.2579 lbs.	874.98	874.98	874.98
20-704-140		5/8"	1/4"	2-1/2"	82°	1	0.13 lbs.	521.78	521.78	521.78
20-704-132		1/2"	1/4"	2-1/2"	82°	1	0.0859 lbs.	362.62	362.62	362.62
20-704-124		3/8"	1/4"	2-1/2"	82°	1	0.0617 lbs.	253.73	253.73	253.73
20-704-116		1/4"	1/4"	2"	82°	1	0.0331 lbs.	161.34	161.34	161.34
20-704-064		1"	1/2"	3"	60°	1	0.2601 lbs.	1123.75	1123.75	1123.75
20-704-048		3/4"	3/8"	2-3/4"	60°	1	0.2579 lbs.	874.98	874.98	874.98
20-704-040		5/8"	1/4"	2-1/2"	60°	1	0.13 lbs.	521.78	521.78	521.78
20-704-032		1/2"	1/4"	2-1/2"	60°	1	0.0859 lbs.	362.62	362.62	362.62
20-704-024		3/8"	1/4"	2-1/2"	60°	1	0.0617 lbs.	253.73	253.73	253.73
20-704-016		1/4"	1/4"	2"	60°	1	0.0331 lbs.	161.34	161.34	161.34
